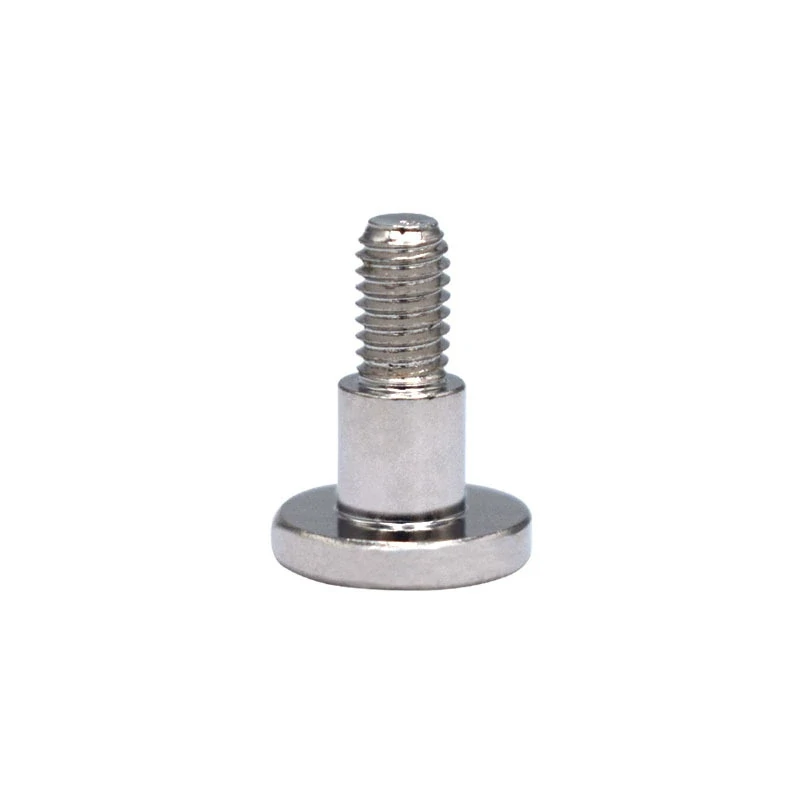

Shoulder Bolt for Aluminum Frame Cabinet Doors
Overview
For this application, shoulder bolt is specified for the typical load, environment, and usage of this application. It must handle the typical demands of aluminum frame cabinet doors while matching the surrounding furniture finish.
See the full Shoulder Bolt page for all sizes, materials, finishes, and specifications.
Industry Data
Use these product signals to compare fit, specification risk, and sourcing options before requesting samples or bulk pricing.
- Thread / Diameter: M4 Confirm the exact value on the order datasheet before production.
- Length: 70 mm Confirm the exact value on the order datasheet before production.
- Head / Drive: Hex socket cap Confirm the exact value on the order datasheet before production.
- Pilot Hole: 4 mm Confirm the exact value on the order datasheet before production.
- Recommended Panel: MDF and particle board Confirm the exact value on the order datasheet before production.
- Material options: Stainless Steel, Carbon Steel, Zinc Alloy, Aluminum and Brass Choose material by strength, corrosion exposure, and target price.
- Finish options: Satin Brass, Gray, Brushed Gold, Flat Black and Polished Stainless Steel Confirm finish samples when color matching matters.
- Application fit: Aluminum Frame Cabinet Doors, Handleless Cabinets, Soft Close Cabinets and Push To Open Cabinets Match the product to the furniture use case, not only to the part name.
Key Specifications
| Thread / Diameter | M4 |
|---|---|
| Length | 70 mm |
| Head / Drive | Hex socket cap |
| Pilot Hole | 4 mm |
| Recommended Panel | MDF and particle board |
| Finish / Coating | Black oxide |
| Packaging | Polybag by furniture SKU |
Values are configurable for OEM/ODM orders and confirmed on your datasheet.
Selection Factors
- Screw type and thread for the board material
- Head type and drive (Pozi, Torx, hex socket)
- Length and diameter for the joint
- Board material: MDF, particle board, or plywood
- Pre-drilling and pilot-hole requirement
- Pull-out resistance and joint strength
Installation Notes
Pre-drill the recommended pilot in MDF and particle board to prevent splitting, then drive to flush without over-torquing. Use the correct bit to avoid cam-out on high-volume lines.
