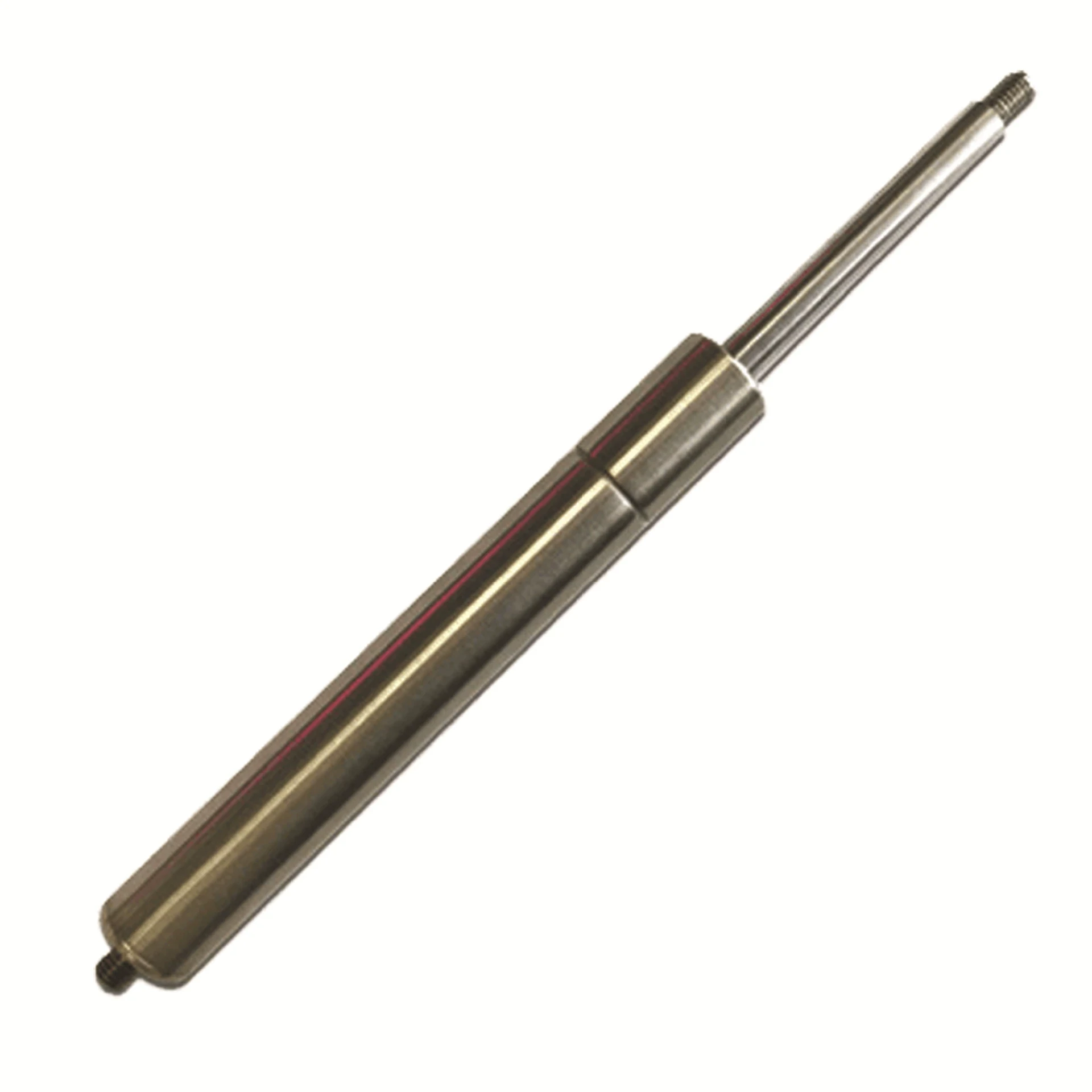

Gas Spring for Wall Cabinets
Overview
For this application, gas spring is specified for the typical load, environment, and usage of this application. It must handle the typical demands of wall cabinets while matching the surrounding furniture finish.
See the full Gas Spring page for all sizes, materials, finishes, and specifications.
Industry Data
Use these product signals to compare fit, specification risk, and sourcing options before requesting samples or bulk pricing.
- Lift Force: 120 N Confirm the exact value on the order datasheet before production.
- Stroke Length: 150 mm Confirm the exact value on the order datasheet before production.
- Extended Length: 265 mm Confirm the exact value on the order datasheet before production.
- Door Weight Range: 6-12 kg per pair Confirm the exact value on the order datasheet before production.
- Opening Angle: 75-90 deg Confirm the exact value on the order datasheet before production.
- Material options: Stainless Steel, Carbon Steel, Zinc Alloy, Aluminum and Brass Choose material by strength, corrosion exposure, and target price.
- Finish options: Satin Chrome, Chrome, Pewter, Aged Brass and Antique Brass Confirm finish samples when color matching matters.
- Application fit: Wall Cabinets, Base Cabinets, Tall Cabinets and Shoe Cabinets Match the product to the furniture use case, not only to the part name.
Key Specifications
| Lift Force | 120 N |
|---|---|
| Stroke Length | 150 mm |
| Extended Length | 265 mm |
| Door Weight Range | 6-12 kg per pair |
| Opening Angle | 75-90 deg |
| Mounting | Side panel bracket |
| Damping | Hold-open |
Values are configurable for OEM/ODM orders and confirmed on your datasheet.
Selection Factors
- Door weight and height to size the force
- Lift type: flap stay, gas strut, or mechanical lift system
- Opening angle and stay position
- Soft-close damping
Installation Notes
Fix the bracket positions to the geometry chart, then test the hold-open and soft stop.
