Overview

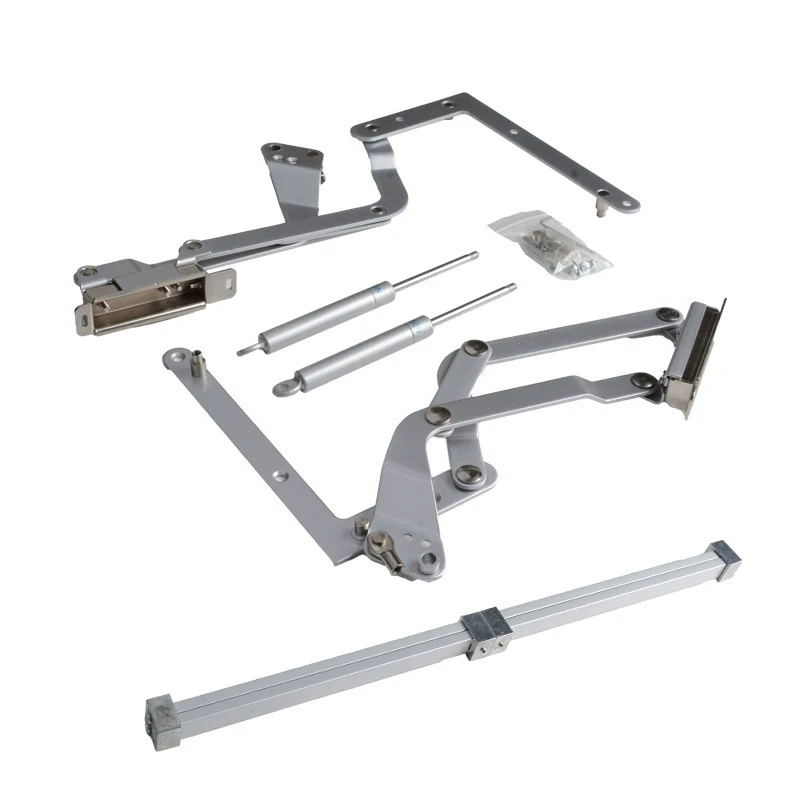

Gas Lift Support supports an upward-opening cabinet flap, holding it open and lowering it smoothly, sized by door weight and height. This page summarizes how to specify it for volume furniture and cabinet manufacturing, including the dimensions and options that matter most to buyers.
Specifications & Options
| Lift Force | 60 N · 80 N · 100 N · 120 N · 150 N · 180 N |
|---|---|
| Stroke Length | 80 mm · 100 mm · 120 mm · 150 mm · 180 mm |
| Extended Length | 245 mm · 265 mm · 280 mm · 300 mm · 350 mm |
| Door Weight Range | 2-5 kg per pair · 4-8 kg per pair · 6-12 kg per pair · Up to 15 kg per pair |
| Opening Angle | 75-90 deg · 90-105 deg · Up to 110 deg |
| Mounting | Ball-stud bracket · Side panel bracket · Flap door bracket set · Left/right pair |
| Damping | Soft-close · Hold-open · Free-stop friction · Hydraulic slow-down |
Ranges show what we supply for this product type. Your exact values are fixed on the order datasheet.
How to Choose
- Door weight and height to size the force
- Lift type: flap stay, gas strut, or mechanical lift system
- Opening angle and stay position
- Soft-close damping
Materials & Finishes
Materials
Steel cylinders with nitrogen charge; plated for corrosion resistance.
- Stainless Steel
- Carbon Steel
- Zinc Alloy
- Aluminum
- Brass
- Copper
Finishes
Typically gray or nickel and mostly hidden inside the cabinet.
- White
- Brushed Gold
- Aged Brass
- Polished Chrome
- Gray
- Galvanized
- Rose Gold
- Polished Stainless Steel
Application Fit
- Outdoor Furniture
- For this application, gas lift support is specified for corrosion resistance, stainless options, and weather exposure.
- RV Furniture
- For this application, gas lift support is specified for the typical load, environment, and usage of this application.
- Marine Furniture
- For this application, gas lift support is specified for the typical load, environment, and usage of this application.
- Flat Pack Furniture
- For this application, gas lift support is specified for knock-down assembly, repeatable installation, and packaging efficiency.
- RTA Furniture
- For this application, gas lift support is specified for tool-light assembly and consistent drilling patterns.
- Custom Cabinets
- For this application, gas lift support is specified for the typical load, environment, and usage of this application.
Installation Notes
Fix the bracket positions to the geometry chart, then test the hold-open and soft stop.
Animated installation guide Step-by-step diagrams for installing Gas Lift Support on a production line.Buying Notes for OEM Orders
Confirm force class against a sample flap; standardize brackets across the range.
Comparisons
