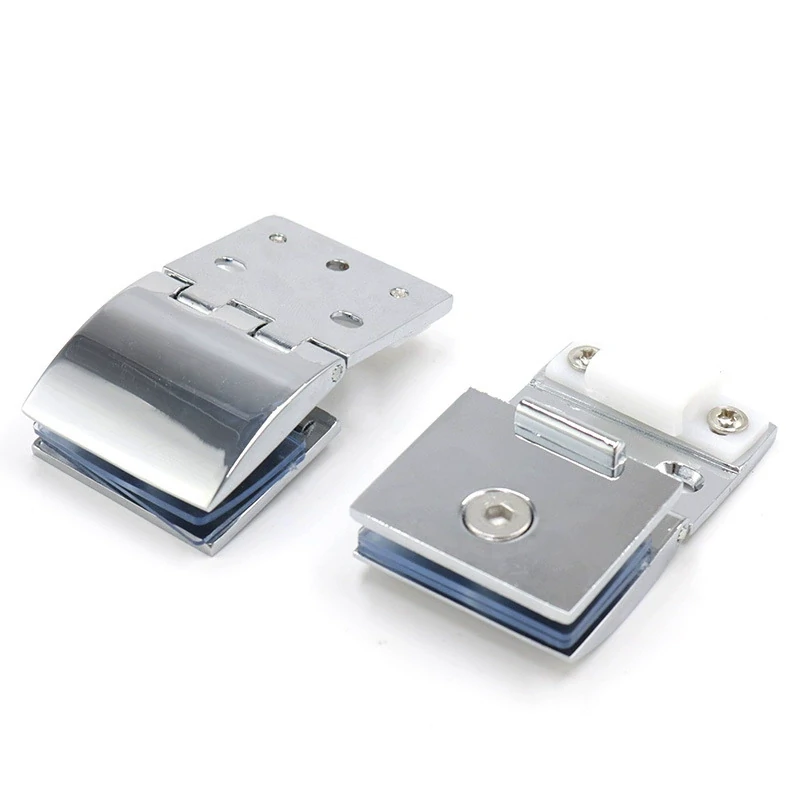

Glass Cabinet Hinge for Retail Display Fixtures
Overview
For this application, glass cabinet hinge is specified for the typical load, environment, and usage of this application. It must handle the typical demands of retail display fixtures while matching the surrounding furniture finish.
See the full Glass Cabinet Hinge page for all sizes, materials, finishes, and specifications.
Industry Data
Use these product signals to compare fit, specification risk, and sourcing options before requesting samples or bulk pricing.
- Cup Diameter: 26 mm for thin doors Confirm the exact value on the order datasheet before production.
- Cup Depth: 11.5 mm Confirm the exact value on the order datasheet before production.
- Opening Angle: 95 deg Confirm the exact value on the order datasheet before production.
- Overlay / Crank: Blind corner Confirm the exact value on the order datasheet before production.
- Door Thickness: 16-22 mm Confirm the exact value on the order datasheet before production.
- Material options: Stainless Steel, Carbon Steel, Zinc Alloy, Aluminum and Brass Choose material by strength, corrosion exposure, and target price.
- Finish options: Zinc Plated, Black Nickel, Flat Black, Polished Chrome and Anodized Aluminum Confirm finish samples when color matching matters.
- Application fit: Retail Display Fixtures, Commercial Display Cabinets, Store Fixtures and Restaurant Furniture Match the product to the furniture use case, not only to the part name.
Key Specifications
| Cup Diameter | 26 mm for thin doors |
|---|---|
| Cup Depth | 11.5 mm |
| Opening Angle | 95 deg |
| Overlay / Crank | Blind corner |
| Door Thickness | 16-22 mm |
| Mounting Pattern | 48/6 mm cup screw pattern |
| Closing Function | Soft-close optional |
Values are configurable for OEM/ODM orders and confirmed on your datasheet.
Selection Factors
- Glass thickness and edge support
- Glass-door hinges and clamps
- Showcase locks and security
- Display lighting integration
Installation Notes
Fit cushioned clamps to the glass, set hinges to swing clear, and align doors.
⇲ Animated Installation Guide
Step-by-step SVG diagrams for installing Glass Cabinet Hinge.
