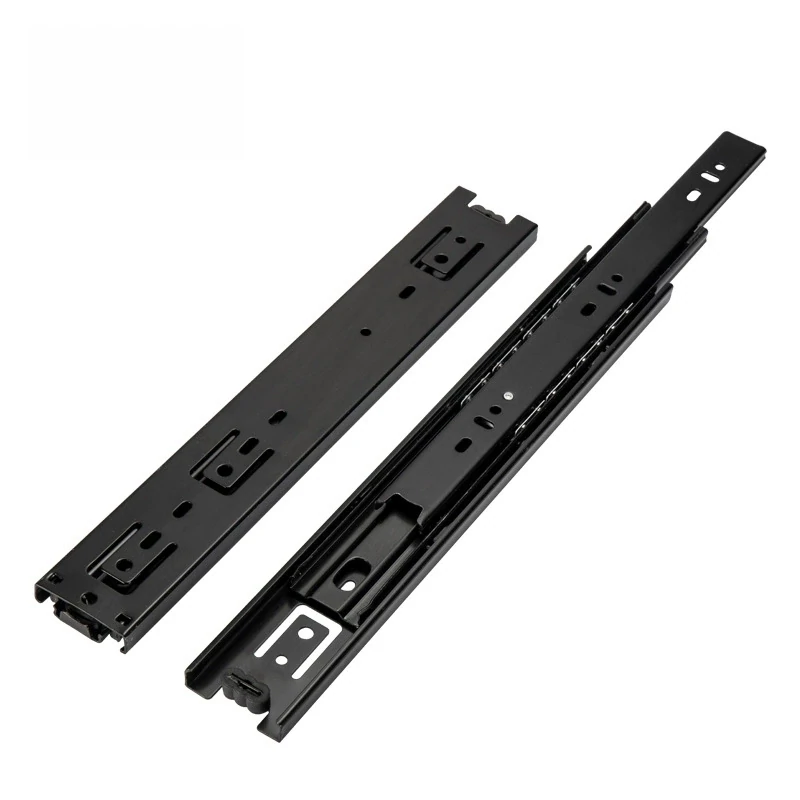

Drawer Slide Kit
Drawer Slide Kit is furniture hardware used in cabinet and furniture manufacturing, selected by load, material, finish, and fit. It is available for OEM bulk supply with samples, datasheets, and installation drawings on request.
Download PDFOverview
Drawer Slide Kit is furniture hardware used in cabinet and furniture manufacturing, selected by load, material, finish, and fit. The notes below cover construction, selection factors, sizes, materials, finishes, application fit, and installation for OEM production.
Industry Data
Use these product signals to compare fit, specification risk, and sourcing options before requesting samples or bulk pricing.
- Nominal Length: 16 in Confirm the exact value on the order datasheet before production.
- Extension Type: Over-travel Confirm the exact value on the order datasheet before production.
- Load Rating: 25 kg Confirm the exact value on the order datasheet before production.
- Mounting Clearance: 12.7 mm (1/2 in) per side Confirm the exact value on the order datasheet before production.
- Member Height: 76 mm heavy-duty profile Confirm the exact value on the order datasheet before production.
- Material options: Stainless Steel, Carbon Steel, Zinc Alloy, Aluminum and Brass Choose material by strength, corrosion exposure, and target price.
- Finish options: Antique Brass, Aged Brass, Powder Coated, Gray and Satin Nickel Confirm finish samples when color matching matters.
- Application fit: Outdoor Furniture, RV Furniture, Marine Furniture and Flat Pack Furniture Match the product to the furniture use case, not only to the part name.
Key Specifications
| Nominal Length | 16 in |
|---|---|
| Extension Type | Over-travel |
| Load Rating | 25 kg |
| Mounting Clearance | 12.7 mm (1/2 in) per side |
| Member Height | 76 mm heavy-duty profile |
| Motion Feature | Hold-in detent |
| Cycle Test | 40,000 cycles |
Specifications are configurable for OEM/ODM orders. Exact values are confirmed on the datasheet for your order.
