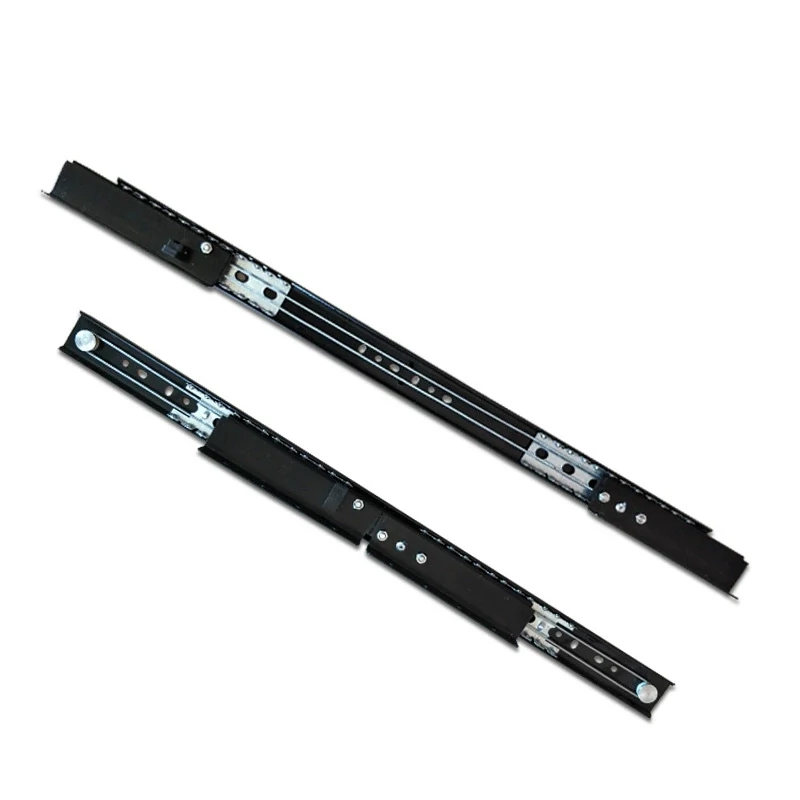

Black Drawer Slide
Black Drawer Slide is a drawer slide that carries the drawer on ball bearings or rollers, providing smooth, load-rated extension and consistent drawer alignment for cabinet and furniture manufacturing. It is available for OEM bulk supply with samples, datasheets, and installation drawings on request.
Download PDFOverview
Black Drawer Slide is a drawer slide that carries the drawer on ball bearings or rollers, providing smooth, load-rated extension and consistent drawer alignment for cabinet and furniture manufacturing. This page summarizes how to specify it for volume furniture and cabinet manufacturing, including the dimensions and options that matter most to buyers.
Industry Data
Use these product signals to compare fit, specification risk, and sourcing options before requesting samples or bulk pricing.
- Nominal Length: 20 in Confirm the exact value on the order datasheet before production.
- Extension Type: Full extension Confirm the exact value on the order datasheet before production.
- Load Rating: 75 lb Confirm the exact value on the order datasheet before production.
- Mounting Clearance: 12.7 mm (1/2 in) per side Confirm the exact value on the order datasheet before production.
- Member Height: 45 mm Confirm the exact value on the order datasheet before production.
- Material options: Stainless Steel, Carbon Steel, Zinc Alloy, Aluminum and Brass Choose material by strength, corrosion exposure, and target price.
- Finish options: Aged Brass, Black Nickel, Gray, Galvanized and Powder Coated Confirm finish samples when color matching matters.
- Application fit: Solid Wood Furniture, Glass Display Cabinets, Aluminum Frame Cabinet Doors and Handleless Cabinets Match the product to the furniture use case, not only to the part name.
Key Specifications
| Nominal Length | 20 in |
|---|---|
| Extension Type | Full extension |
| Load Rating | 75 lb |
| Mounting Clearance | 12.7 mm (1/2 in) per side |
| Member Height | 45 mm |
| Motion Feature | Soft close |
| Cycle Test | 50,000 cycles |
Specifications are configurable for OEM/ODM orders. Exact values are confirmed on the datasheet for your order.
How to Choose
- Slide length matched to the cabinet/drawer depth
- Extension type: full extension, over-travel, or partial
- Mounting type: side mount, undermount, bottom mount, or center mount
- Load capacity for the drawer contents and usage
- Side clearance available in the cabinet opening
- Soft-close, push-to-open, or lockable function
- Ball-bearing vs roller movement and cycle life
- Suitable furniture type and frequency of use
Material Options
Cold-rolled steel with ball bearings is standard; zinc plating resists corrosion indoors, and stainless steel suits damp or outdoor-adjacent use. Steel gauge and bearing count set the load rating.
Finish Options
Zinc-plated is the default; black and stainless options match exposed industrial drawers. Finish mainly affects corrosion resistance since most slides are hidden.
Application Fit
- Solid Wood Furniture
- For this application, black drawer slide is specified for the typical load, environment, and usage of this application.
- Glass Display Cabinets
- For this application, black drawer slide is specified for the typical load, environment, and usage of this application.
- Aluminum Frame Cabinet Doors
- For this application, black drawer slide is specified for the typical load, environment, and usage of this application.
- Handleless Cabinets
- For this application, black drawer slide is specified for the typical load, environment, and usage of this application.
- Soft Close Cabinets
- For this application, black drawer slide is specified for the typical load, environment, and usage of this application.
- Push To Open Cabinets
- For this application, black drawer slide is specified for the typical load, environment, and usage of this application.
Recommended for These Applications
Installation Notes
Mount the cabinet member level and square, fix the drawer member to the drawer side at the matching height, then engage and test full travel. Verify clearance and that soft-close engages before locking the pattern.
⇲ Animated Installation Guide
Step-by-step SVG diagrams for installing Black Drawer Slide on a production line.
Open the installation guide →Buying Notes for OEM Orders
For OEM production, standardize on a small set of slide lengths and one load class per drawer size, and confirm soft-close behavior on a sample batch.
