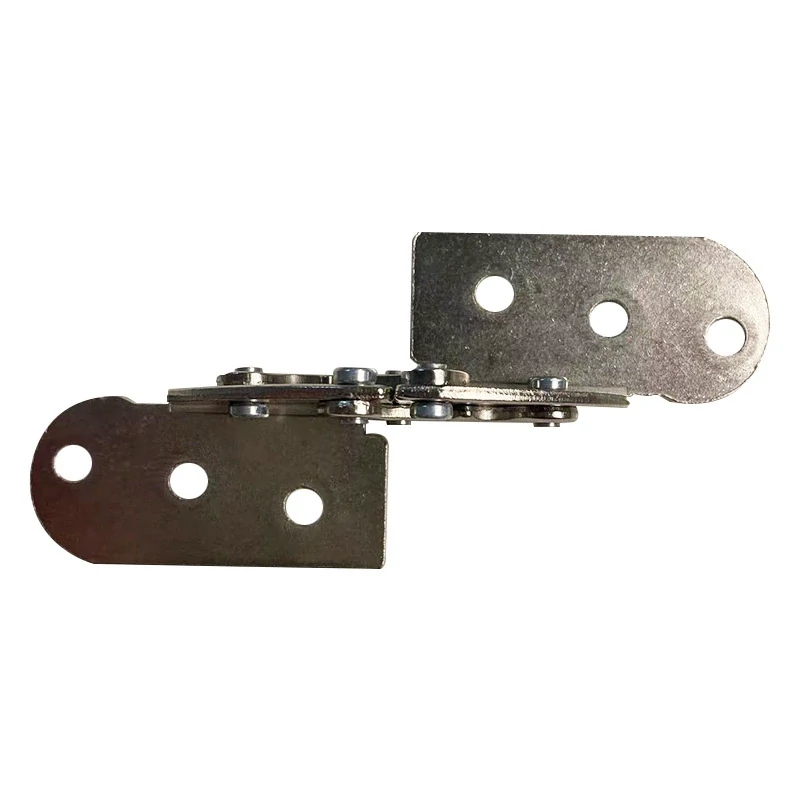

Folding Table Hinge for Outdoor Furniture
Overview
For this application, folding table hinge is specified for corrosion resistance, stainless options, and weather exposure. It must handle the typical demands of outdoor furniture while matching the surrounding furniture finish.
See the full Folding Table Hinge page for all sizes, materials, finishes, and specifications.
Industry Data
Use these product signals to compare fit, specification risk, and sourcing options before requesting samples or bulk pricing.
- Cup Diameter: 35 mm Confirm the exact value on the order datasheet before production.
- Cup Depth: 11.5 mm Confirm the exact value on the order datasheet before production.
- Opening Angle: 120 deg Confirm the exact value on the order datasheet before production.
- Overlay / Crank: Blind corner Confirm the exact value on the order datasheet before production.
- Door Thickness: 18-25 mm Confirm the exact value on the order datasheet before production.
- Material options: Stainless Steel, Carbon Steel, Zinc Alloy, Aluminum and Brass Choose material by strength, corrosion exposure, and target price.
- Finish options: Matte Black, Flat Black, Polished Stainless Steel, Oil Rubbed Bronze and Black Nickel Confirm finish samples when color matching matters.
- Application fit: Outdoor Furniture, RV Furniture, Marine Furniture and Flat Pack Furniture Match the product to the furniture use case, not only to the part name.
Key Specifications
| Cup Diameter | 35 mm |
|---|---|
| Cup Depth | 11.5 mm |
| Opening Angle | 120 deg |
| Overlay / Crank | Blind corner |
| Door Thickness | 18-25 mm |
| Mounting Pattern | 45/9.5 mm cup screw pattern |
| Closing Function | Self closing |
Values are configurable for OEM/ODM orders and confirmed on your datasheet.
Selection Factors
- Cup diameter (35mm is the furniture-industry standard; 26mm for thin doors)
- Cup depth and the required boring pattern
- Opening angle (95°–110° for most doors, wide-angle for blind corners)
- Overlay type: full overlay, half overlay, or inset
- Face-frame vs frameless (European) cabinet construction
- Door thickness and material
Installation Notes
Bore the 35mm cup, screw the hinge boss to the door, fix the mounting plate to the cabinet side at the correct height, then clip the arm to the plate. Use the three adjustment screws to align overlay, height, and depth.
⇲ Animated Installation Guide
Step-by-step SVG diagrams for installing Folding Table Hinge.
Open the installation guide →Related Applications
