Overview

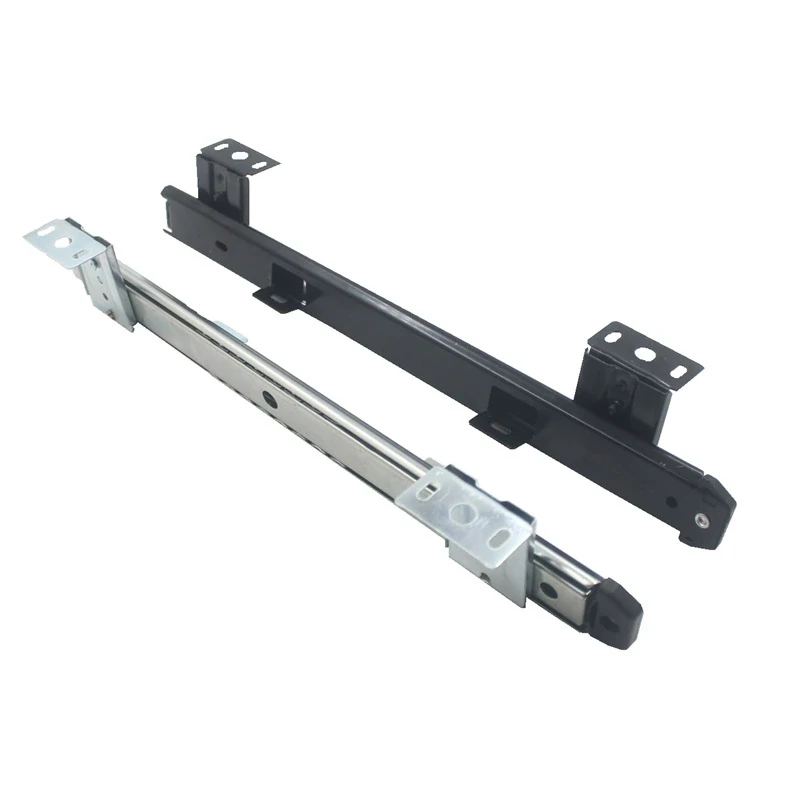

Keyboard Tray Slide equips office furniture with load-rated drawer motion, central locking, and cable management for daily use. This page summarizes how to specify it for volume furniture and cabinet manufacturing, including the dimensions and options that matter most to buyers.
Specifications & Options
| Nominal Length | 12 in · 14 in · 16 in · 18 in · 20 in · 22 in · 24 in · 28 in |
|---|---|
| Extension Type | Full extension · Over-travel |
| Load Rating | 25 kg · 35 kg · 45 kg · 75 lb · 100 lb |
| Mounting Clearance | 12.7 mm (1/2 in) per side · Side mount, 12.5 mm per side |
| Member Height | 35 mm · 45 mm · 53 mm · 76 mm heavy-duty profile |
| Motion Feature | Soft close · Self close · Hold-in detent · Lock-in / lock-out |
| Cycle Test | 40,000 cycles · 50,000 cycles · 80,000 cycles |
Ranges show what we supply for this product type. Your exact values are fixed on the order datasheet.
How to Choose
- File-drawer load and full-extension travel
- Central locking for pedestals
- Cable management and grommets
- High-frequency cycle life
Materials & Finishes
Materials
Steel slides and zinc locks for daily office use.
- Stainless Steel
- Carbon Steel
- Zinc Alloy
- Aluminum
- Brass
- Copper
Finishes
Black, silver, and nickel for desks and pedestals.
- Polished Stainless Steel
- Galvanized
- Polished Chrome
- Black Nickel
- Anodized Aluminum
- Aged Brass
- Zinc Plated
- Rose Gold
Application Fit
- File Cabinets
- For this application, keyboard tray slide is specified for full-extension access and load-rated, lockable operation.
- Tool Cabinets
- For this application, keyboard tray slide is specified for heavy loads, ball-bearing movement, and locking under vibration.
- Pantry Cabinets
- For this application, keyboard tray slide is specified for the typical load, environment, and usage of this application.
- Corner Cabinets
- For this application, keyboard tray slide is specified for the typical load, environment, and usage of this application.
- Wall Cabinets
- For this application, keyboard tray slide is specified for the typical load, environment, and usage of this application.
- Base Cabinets
- For this application, keyboard tray slide is specified for the typical load, environment, and usage of this application.
Installation Notes
Fit load-rated slides, wire central locking, and test the full drawer cycle.
Animated installation guide Step-by-step diagrams for installing Keyboard Tray Slide on a production line.Buying Notes for OEM Orders
Standardize locking and slide classes across the office range.
