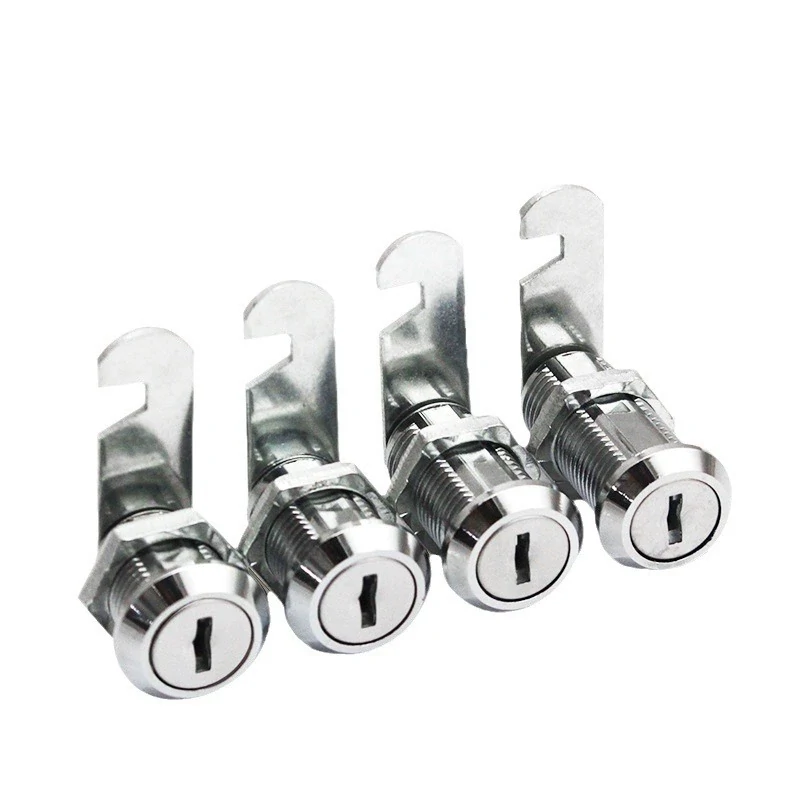

File Cabinet Lock for Glass Display Cabinets
Overview
For this application, file cabinet lock is specified for the typical load, environment, and usage of this application. It must handle the typical demands of glass display cabinets while matching the surrounding furniture finish.
See the full File Cabinet Lock page for all sizes, materials, finishes, and specifications.
Industry Data
Use these product signals to compare fit, specification risk, and sourcing options before requesting samples or bulk pricing.
- Lock Type: Plunger lock Confirm the exact value on the order datasheet before production.
- Cylinder Length: 25 mm Confirm the exact value on the order datasheet before production.
- Panel Thickness: 18-25 mm Confirm the exact value on the order datasheet before production.
- Cam Throw / Reach: 180 deg cam rotation Confirm the exact value on the order datasheet before production.
- Keying Option: Master key system available Confirm the exact value on the order datasheet before production.
- Material options: Stainless Steel, Carbon Steel, Zinc Alloy, Aluminum and Brass Choose material by strength, corrosion exposure, and target price.
- Finish options: Brushed Gold, Polished Brass, Aged Brass, Brushed Nickel and Polished Stainless Steel Confirm finish samples when color matching matters.
- Application fit: Glass Display Cabinets, Aluminum Frame Cabinet Doors, Handleless Cabinets and Soft Close Cabinets Match the product to the furniture use case, not only to the part name.
Key Specifications
| Lock Type | Plunger lock |
|---|---|
| Cylinder Length | 25 mm |
| Panel Thickness | 18-25 mm |
| Cam Throw / Reach | 180 deg cam rotation |
| Keying Option | Master key system available |
| Finish | Black |
| Supplied With | Cam, nut, and rosette |
Values are configurable for OEM/ODM orders and confirmed on your datasheet.
Selection Factors
- File-drawer load and full-extension travel
- Central locking for pedestals
- Cable management and grommets
- High-frequency cycle life
Installation Notes
Fit load-rated slides, wire central locking, and test the full drawer cycle.
⇲ Animated Installation Guide
Step-by-step SVG diagrams for installing File Cabinet Lock.
Open the installation guide →Related Applications
