Overview
Kitchen Rail System maximizes kitchen cabinet storage with pull-outs, organizers, and corner solutions on soft-close runners. The notes below cover construction, selection factors, sizes, materials, finishes, application fit, and installation for OEM production.
Specifications & Options
| Cabinet Width | 300 mm · 400 mm · 450 mm · 500 mm · 600 mm · 900 mm corner cabinet |
|---|---|
| Load Capacity | 10 kg · 15 kg · 20 kg · 30 kg · 50 kg heavy-duty lift |

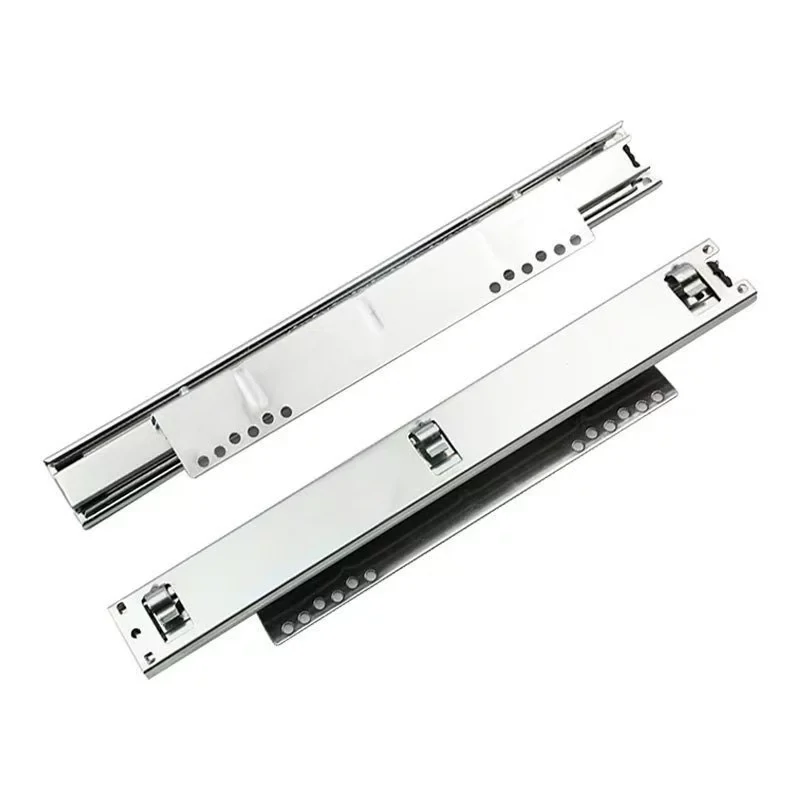

| Runner / Motion | Full-extension runner · Soft-close runner · Synchronized pull-out · Swivel and pull-out · Lift-up assist |
| Basket / Frame Size | Wire basket 430 x 480 mm · Two-tier basket · Under-sink U frame · Pantry frame 1700 mm · Mixer platform 350 x 450 mm |
| Mounting | Base cabinet side mount · Bottom mount · Door-front mount · Corner cabinet pivot mount · Under-desk mount |
| Material / Finish | Chrome-plated steel wire · Powder-coated steel · Aluminum frame with plastic trays · Stainless steel basket |
| Door Compatibility | Hinged door cabinet · Pull-out front fixing · Frameless cabinet · Face-frame bracket available |
Ranges show what we supply for this product type. Your exact values are fixed on the order datasheet.
How to Choose
- Cabinet width and the pull-out or organizer footprint
- Load capacity for loaded baskets
- Soft-close runner integration
- Corner-cabinet access
Materials & Finishes
Materials
Chromed steel wire and aluminum frames; soft-close runners built in.
- Stainless Steel
- Carbon Steel
- Zinc Alloy
- Aluminum
- Brass
- Copper
Finishes
Chrome and anthracite are standard for visible baskets.
- Galvanized
- Polished Brass
- Black Nickel
- Brushed Nickel
- Aged Brass
- Satin Brass
- Stainless Steel
- Champagne Bronze
Application Fit
- Flat Pack Furniture
- For this application, kitchen rail system is specified for knock-down assembly, repeatable installation, and packaging efficiency.
- RTA Furniture
- For this application, kitchen rail system is specified for tool-light assembly and consistent drilling patterns.
- Custom Cabinets
- For this application, kitchen rail system is specified for the typical load, environment, and usage of this application.
- Woodworking Projects
- For this application, kitchen rail system is specified for the typical load, environment, and usage of this application.
- MDF Cabinets
- For this application, kitchen rail system is specified for the typical load, environment, and usage of this application.
- Plywood Cabinets
- For this application, kitchen rail system is specified for the typical load, environment, and usage of this application.
Installation Notes
Mount to the cabinet width, level the baskets, and test soft-close under load.
Animated installation guide Step-by-step diagrams for installing Kitchen Rail System on a production line.Buying Notes for OEM Orders
Standardize to common cabinet widths and one finish across the range.
